2010-1302 by wago
图片仅供参考 - 请查看制造商规格
产品说明书

2010-1302

WAGO

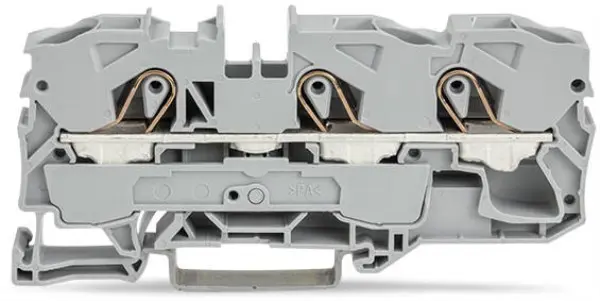

The 2010-1302 is a 3-conductor, 10 mm² feed-through terminal block featuring Push-in CAGE CLAMP® technology for DIN rail mounting. .. 查看完整描述

符合 RoHS
包装
附件
附件
This product is backed by Ecco Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. 合规证书保证
产品属性
属性值 选择属性
找到的产品: 0
供应商:
WAGO
部件编号:
2010-1302
RoHS:
Yes
HTS:
8536904000
COO:
DE
ECCN:
EAR99
供应商标准包装 此信息提供给偏好按制造商标准包装数量的倍数购买的客户。最小订购数量和要求的订购倍数会与我们的价格和库存信息一起显示。
1
The 2010-1302 is a 3-conductor feed-through terminal block designed for the fast and reliable connection of electrical conductors. It utilizes Push-in CAGE CLAMP® technology, allowing for the direct, tool-free insertion of solid and ferruled conductors. The terminal is rated for 800V and 57A according to IEC/EN 60947-7-1 and accommodates a conductor cross-section range from 0.5 mm² to 16 mm². Suitable for Ex e II applications and with a continuous operating temperature of -60°C to +105°C, this terminal block is ideal for use in demanding industrial and building automation systems.
搜索关键词:
20101302
有存货: 1,395
可立即发货
最小订购数量:
5
工厂交货期
5 周
价格 (USD)
数量
单价
总价
5
$11.95
$59.75
25
$8.80
$220.00
50
$8.05
$402.50
100
$7.46
$746.00
250
$6.88
$1,720.00
500
$6.58
$3,290.00
1,000
$6.34
$6,340.00
2,500 +
$6.32
$15,800.00
