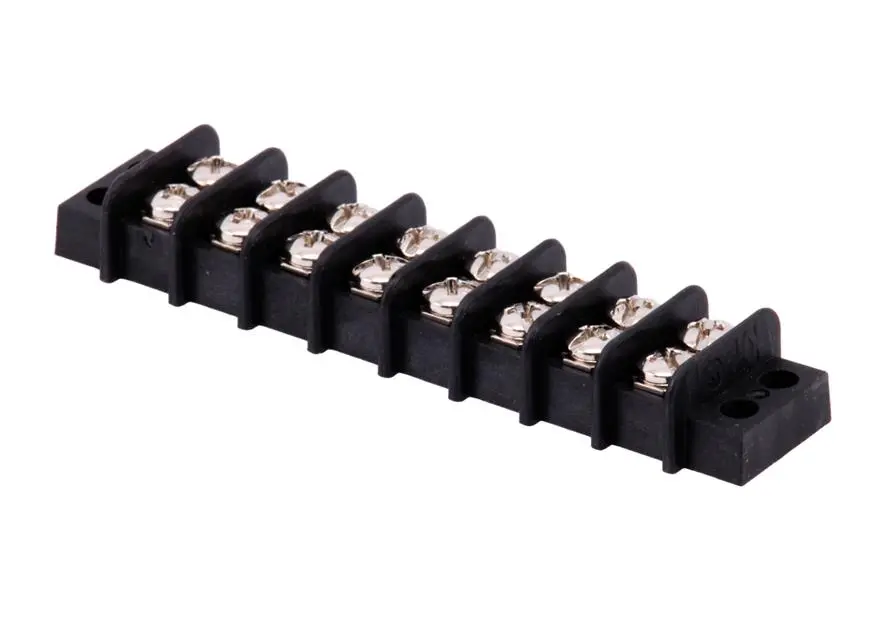

29.400.0853.0 by wieland electric
图片仅供参考 - 请查看制造商规格
产品说明书

29.400.0853.0

Wieland Electric

Conn Terminal Strip F 8 POS Screw RA Cable Mount 20A .. 查看完整描述

符合 RoHS
包装
附件
已停产
附件
This product is backed by Ecco Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. 合规证书保证
产品属性
属性值 选择属性
找到的产品: 0
供应商:
Wieland Electric
部件编号:
29.400.0853.0
RoHS:
Yes
HTS:
8536904000
COO:
DE
ECCN:
EAR99
供应商标准包装 供应商原始包装中所含物品的数量、长度、重量或体积,以便高效存储、搬运和配送。
40
类型:
Terminal Strip
安装方式:
Cable Mount
公母类型:
F
端接方式:
Screw
间距:
N/A
电路数量:
4
最大电压额定值:
250 V
最大电流额定值:
20 A
线径:
12-22 AWG
工作温度:
N/A
生命周期:
已停产
The 29.400.0853.0 is an 8-pole modular terminal block (Type KL 16/8 PA) designed for secure electrical connections in industrial control and distribution applications. It features polyamide 6.6 insulating housing with nickel-plated brass clamping bodies and accepts wire gauges from No. 22–12 AWG (1–2.5 mm² solid or stranded conductors). The terminal block is rated for AC 400 V at 10 A, with additional ratings of 250 V at 20 A and 300 V at 25 A, and provides 500 V / 6 kV / 3 dielectric strength. It operates across a temperature range of -40 °C to +100 °C and meets EN 60998-1/-2-1, EN 61210, and UL/CSA approvals. This modular design is commonly used in panel-mounted and DIN rail applications for power distribution, signal routing, and equipment interconnection in industrial machinery and control systems.
搜索关键词:
2940008530
  此产品已停产,但仍有库存
有存货: 24
发货 today, 输入设置值。
价格 (USD)
数量
单价
总价
1
$12.63
$12.63
25
$4.74
$118.50
40
$3.73
$149.20
100
$3.54
$354.00
250
$3.36
$840.00
500
$3.19
$1,595.00
1,000 +
$3.03
$3,030.00
