0707073
Phoenix ContactThe 0707073 is a panel feed-through terminal block that utilizes a screw connection for conductors ranging from 20 to 6 AWG. .. see full description
Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Phoenix Contact
Part No:
0707073
RoHS:
Yes
HTS:
8536904000
COO:
GR
ECCN:
EAR99
Supplier Standard Pack
50
Type:
Feed-Through Terminal Block
Mounting:
Panel Mount
Gender:
F
Termination Method:
Screw
Pitch:
N/R
Number of Circuits:
1
Maximum Voltage Rating:
400 V
Maximum Current Rating:
57 A
Wire Size:
6-20 AWG
Operating Temperature:
N/A
Life Cycle:
Discontinued & Replaced

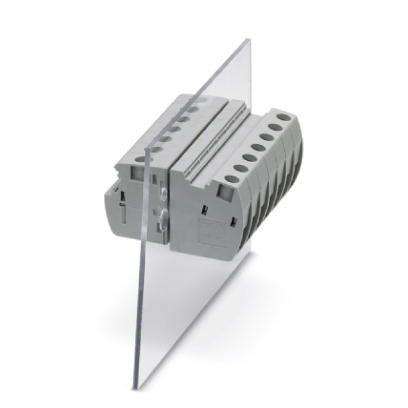

The 0707073 is a panel feed-through terminal block designed to pass electrical connections through an enclosure. It supports a maximum load current of 76 A and a nominal current of 57 A, accommodating a conductor cross-section range from 0.5 mm² to 16 mm² (AWG 20-6). The block has a nominal voltage rating of up to 400 V and a rated surge voltage of 6 kV. Constructed from gray polyamide (PA) with a UL 94 V0 flammability rating, this single-position, 10.1 mm wide block features an M4 screw thread with a tightening torque of 1.5 Nm to 1.8 Nm. This component is ideal for creating secure and reliable pass-through connections in industrial control panels and equipment housings.
Search Keywords:
0707073
This product is not in stock and cannot be back-ordered
