5747845-6 by te connectivity / amp brand
Image is representational - see manufacturer specifications
DATA SHEET

5747845-6

TE Connectivity / AMP Brand

D Sub Connector - DB15 - Size 2 - 15 Contacts - Receptacle - Right Angle - Through Hole - Front Metal Shell - AMPLIMITE HD-20 Series. .. see full description

RoHS Compliant
TRAY Packaging

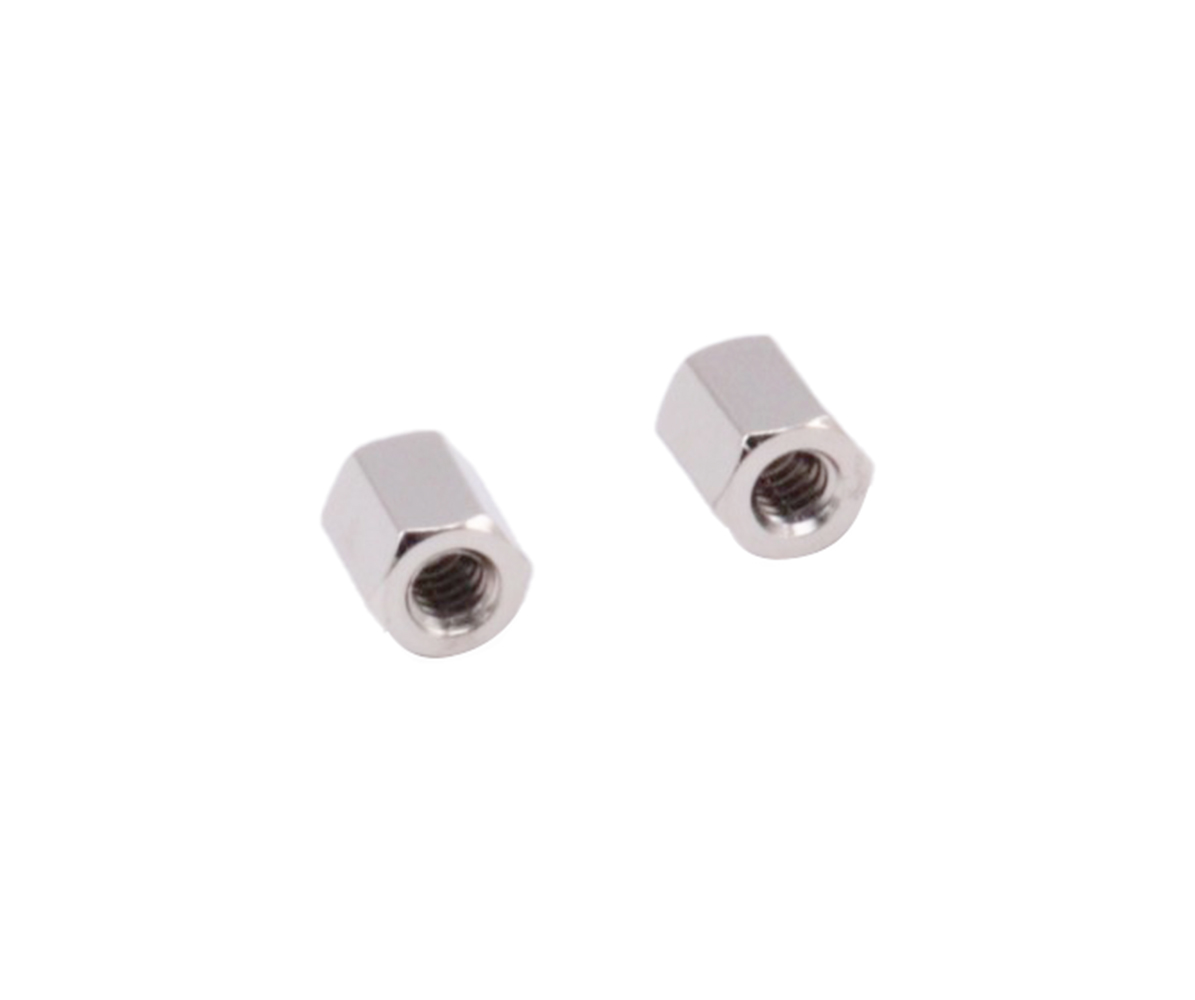

Accessories
Accessories
This product is backed by Ecco Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee
Product Attribute
Attribute Value Select Attribute
Products found: 0
Supplier:
TE Connectivity / AMP Brand
Part No:
5747845-6
RoHS:
Yes
HTS:
8536694040
COO:
MX
ECCN:
EAR99
Supplier Standard Pack This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
104
Package Type:
TRAY
Type:
D-Subminiature
Body Orientation:
Right Angle
Mounting:
Through Hole
Gender:
SKT
Termination Method:
Solder
Shell Size:
2
Number of Contacts:
15
Contact Plating:
Gold over Nickel
Operating Temperature:
N/A
The 5747845-6 is a 15-way 2-row front metal shell D-sub Plug with gold-plated brass contacts and clear chromate-plated zinc 4-40 UNC threaded inserts. The Amplimite HD-20 series right angle posted plug comes with grounding indents, grounding straps, black nylon/polyester housing, tin-plated brass eyelet, tin-plated carbon steel shell and tin-plated solder tail. Plugs are preloaded with size 20 DF posted pin contacts. Connectors are intermateable with any size 20 subminiature D connectors dimensionally complying with MIL-C-24308. The front metal-shell design is compatible with full metal-shell connectors.
Product Highlights:
  • Number of Positions = 15
  • Receptacle
  • PCB Mount Angle = Right Angle
  • Product Series = HD 20
  • With Mating Connector Lock
Search Keywords:
57478456
IN STOCK: 1,000
Ships today, if you order in
On Order:
1,560   can ship 2/22/27
1,040   can ship 7/5/27
Minimum Order Quantity:
5
Factory Lead-Time
36 Weeks
Price (USD)
Quantity
Unit Price
Ext. Price
5
$7.10
$35.50
25
$6.74
$168.50
50
$6.41
$320.50
104
$6.09
$633.36
312
$5.78
$1,803.36
520
$5.49
$2,854.80
1,040
$4.39
$4,565.60
2,600 +
$3.85
$10,010.00
Supplier's Standard Package
