KUP-11D15-24 by te connectivity / p-b brand

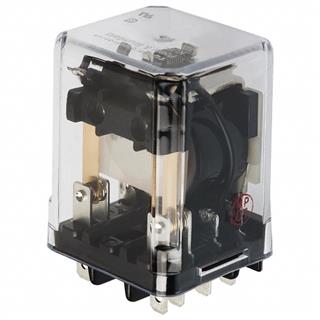

Image is representational - see mfr. specs
DATA SHEET

KUP-11D15-24

TE Connectivity / P&B Brand

Power Relay 24VDC 10A DPDT(38.9mm 35.7mm 50mm) Socket .. see full description

RoHS Compliant
Pack Packaging
Accessories
Accessories
This product is backed by Ecco Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee
Product Attribute
Attribute Value Select Attribute
Products found: 0
Supplier:
TE Connectivity / P&B Brand
Part No:
KUP-11D15-24
Alias/AKA:
4-1393117-5
RoHS:
Yes
HTS:
8536410050
COO:
CN
ECCN:
EAR99
Supplier Standard Pack This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
25
Package Type:
Pack
Relay Construction:
Non-Latching
AC Coil Voltage:
N/A
DC Coil Voltage:
24 V
Contact Arrangement:
DPDT
Maximum Current Rating:
10 A
Mounting:
Socket
Termination Style:
0.187Quick Connect/Solder
Push to Test Button:
No
Led Indicator:
No
Operating Temperature:
-45 to 70 °C
Coil Resistance:
472 Ohm
The TE Connectivity / P&B Brand part KUP-11D15-24 is a reliable power relay designed for a wide range of applications. It is a double-pole, double-throw (DPDT) relay with a maximum current rating of 10A. This relay operates on a 24VDC power supply and comes with a convenient socket for easy installation. With its compact dimensions of 38.9mm x 35.7mm x 50mm, it can easily fit into tight spaces without sacrificing functionality. The KUP-11D15-24 relay is known for its high-quality construction and long-lasting performance, making it an excellent choice for various industrial and commercial applications.
Product Highlights:
  • KUP Series
  • Contact Arrangement = 2 Form C, DPDT, 2 C/O
  • Contact Current Rating = 10 Amps.
  • Monostable Coil Magnetic System
  • Without Coil Suppression Diode
Search Keywords:
KUP11D1524
  Possible Replacement options available.  See Alternatives
IN STOCK: 1,091
Ships today, if you order in
On Order:
600   can ship 9/28/26
Factory Lead-Time
25 Weeks
Price (USD)
Quantity
Unit Price
Ext. Price
1
$23.57
$23.57
5
$19.24
$96.20
10
$16.81
$168.10
25
$16.06
$401.50
50
$15.90
$795.00
100
$15.82
$1,582.00
250 +
$15.49
$3,872.50
Suppliers Standard Package
