Amphenol Sine Systems DuraMate™ Family of Connectors

Amphenol Sine Systems’ DuraMate™ Family of environmentally-sealed, multi-pin, heavy duty, plastic (AHDP) or metal (AHDM/AHDBM) circular connectors provide an economical, quick-connect, bayonet-locking system manufactured to withstand the challenges and complexities of harsh-environment, off-road applications.

  • 3 key-way bayonet design ensures proper mating of connectors
  • High strength impact resistant & lightweight thermoplastic or zinc-alloy metal housings
  • Environmentally-sealed and engineered rapid and secure mating system achieves IP68/IP69K protection (in mated condition) from ingress of dust, water, mud and other contaminants and is vibration resistant
  • Backshells maintain a compression-fit design to resist maximum pull-out forces and facilitate strain-relief for jacketed cable ranges
  • Utilizes A Series™ standard contact system (Stamped & Formed or Machined)
  • Sealing features consisting of durable high temperature silicone provide barrier from lubricating oils, hydraulic fluids and fossil fuels
Vista
Mostrar productos fabricados por Amphenol Sine Systems
Distribuidor Autorizado
Información
Gama de productos Chat en vivo Soporte técnico
Guías de productos

317 RESULTADOS DEL PRODUCTO PARA ""

Filter Results

317 Productos

    AHDP04-24-47PR-WTA
    Hoja de datos
    AHDP04-24-47PR-WTA Amphenol Sine Systems
    Size 24 Receptacle with 47 positions, Pin, standard arrangement, reduced seal, wide thread adapter
    VER PRODUCTO
    En stock: 478
    Se envía de inmediato
    5
    $9.59
    25
    $7.49
    50
    $7.35
    100
    $7.20
    250
    $7.15
    AHDP04-24-47SR-BRA
    Hoja de datos
    AHDP04-24-47SR-BRA Amphenol Sine Systems
    47 Position Receptacle - Socket - Shell Size 24 - Reduced Diameter Seal (Blue) - Backshell Ring Adapter
    VER PRODUCTO
    14 Semanas
    5
    $12.48
    25
    $11.31
    50
    $10.81
    100
    $9.84
    250
    $8.75
    AHDP04-24-47SR-WTA
    Hoja de datos
    AHDP04-24-47SR-WTA Amphenol Sine Systems
    Size 24 Receptacle with 47 positions, Socket, reversed arrangement, reduced seal, wide thread adapter
    VER PRODUCTO
    En stock: 114
    Se envía de inmediato
    5
    $11.37
    25
    $7.28
    50
    $7.19
    100
    $7.01
    250
    $6.98
    AHDP04-24-91PR-WTA
    Hoja de datos
    AHDP04-24-91PR-WTA Amphenol Sine Systems
    The AHDP04-24-91PR-WTA is a 9-position, shell size 24, environmentally-sealed circular receptacle from the DuraMa ...
    VER PRODUCTO
    14 Semanas
    5
    $10.69
    25
    $9.69
    50
    $9.25
    100
    $8.99
    250
    $7.99
    AHDP06-18-06PN-SRAC030
    Hoja de datos
    AHDP06-18-06PN-SRAC030 Amphenol Sine Systems
    Size 18 plug, 2 positions, reversed arrangement, pin, normal seal, smooth ring adapter
    VER PRODUCTO
    En stock: 100
    Se envía de inmediato
    5
    $7.74
    25
    $7.49
    50
    $7.38
    100
    $7.27
    250
    $7.13
    AHDP06-18-06SN-BRA
    Hoja de datos
    AHDP06-18-06SN-BRA Amphenol Sine Systems
    6 Position Plug Socket - Shell Size 18 - Normal Diameter Seal (Green) - Backshell Ring Adapter
    VER PRODUCTO
    En stock: 10
    Se envía de inmediato
    A pedido: 100
    puede enviar 8/13/26
    5
    $10.73
    25
    $10.55
    50
    $10.17
    100
    $9.62
    250
    $9.15
    AHDP06-18-06SN-BRAC030
    Hoja de datos
    AHDP06-18-06SN-BRAC030 Amphenol Sine Systems
    2 Position Plug - Socket - Shell Size 18 - Normal Diameter Seal (Green) - Backshell Ring Adapter
    VER PRODUCTO
    En stock: 215
    Se envía de inmediato
    5
    $9.13
    25
    $8.67
    50
    $8.47
    100
    $7.85
    250
    $7.17
    AHDP06-18-06SN-SRA
    Hoja de datos
    AHDP06-18-06SN-SRA Amphenol Sine Systems
    Size 18 plug, 6 positions, socket, standard arrangement, normal seal, wide thread adapter
    VER PRODUCTO
    En stock: 94
    Se envía de inmediato
    5
    $10.19
    25
    $9.29
    50
    $8.91
    100
    $8.66
    250
    $8.22

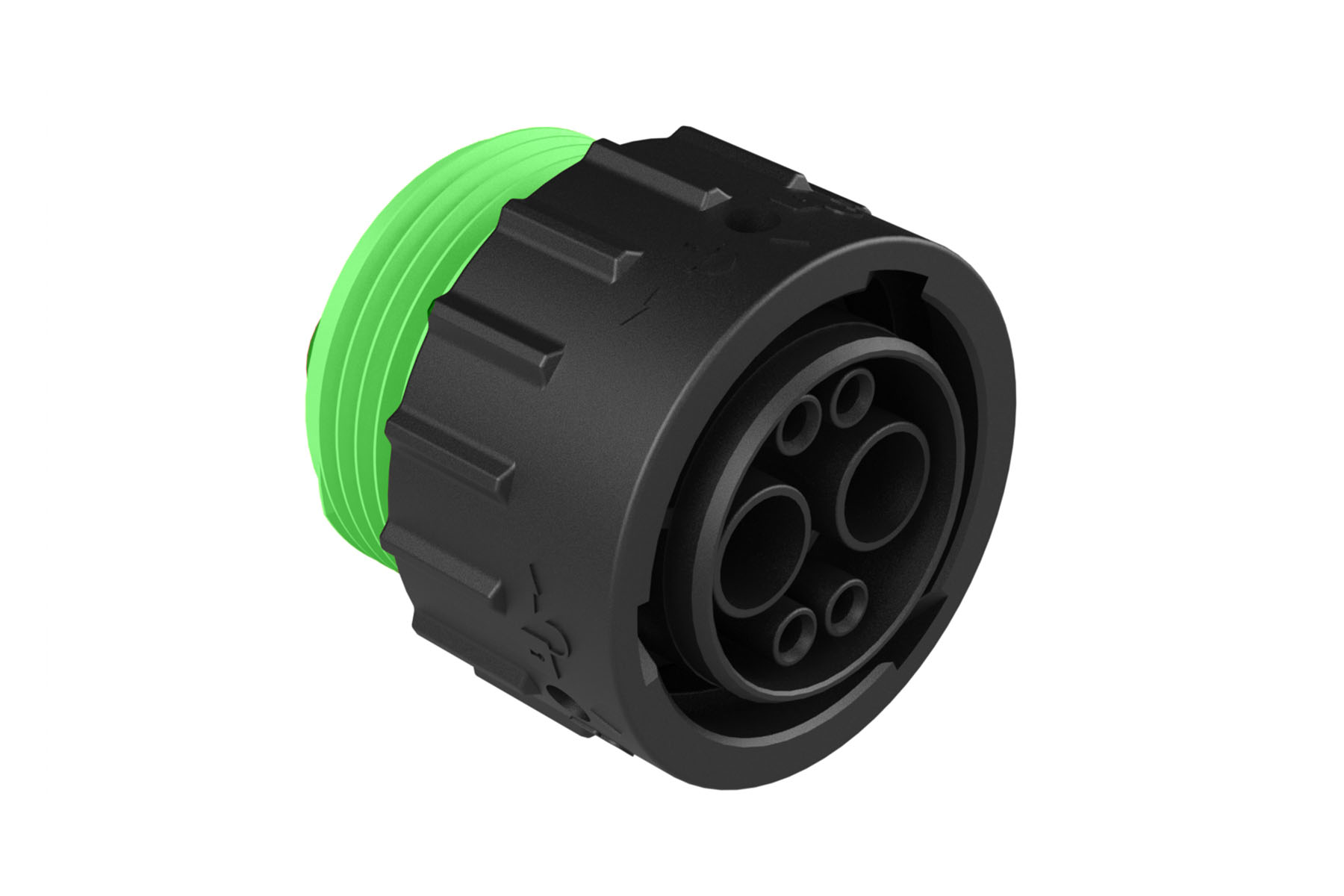

    AHDP06-18-06SN-WTA
    Hoja de datos
    AHDP06-18-06SN-WTA Amphenol Sine Systems
    Size 18 plug, 6 positions, socket, standard arrangement, normal seal, wide thread adapter STANDARD DIA. SEAL
    VER PRODUCTO
    En stock: 200
    Se envía de inmediato
    5
    $7.96
    25
    $7.56
    50
    $7.39
    100
    $7.28
    250
    $7.08
    AHDP06-18-06SN-WTAC030
    Hoja de datos
    AHDP06-18-06SN-WTAC030 Amphenol Sine Systems
    Size 18 plug, 2 positions, standard arrangement, socket, normal seal, wide thread adapter STANDARD DIA. SEAL
    VER PRODUCTO
    En stock: 6
    Se envía de inmediato
    5
    $8.13
    25
    $7.45
    50
    $7.34
    100
    $7.14
    250
    $7.06
