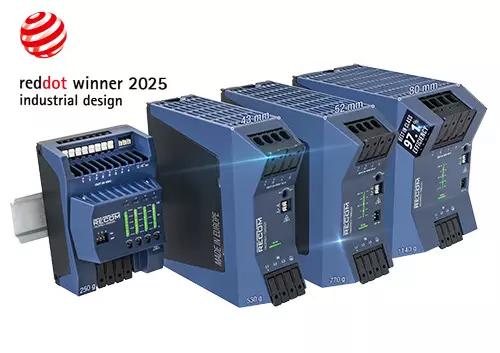

RECOM’s DIN-Rails

RECOM industrial DIN rail power supplies, e-Fuses, and redundancy diodes is specifically designed to meet the needs of today’s most demanding industrial applications.

  • RACPRO1-T240/480/960 offer 3x320–575VAC & 430–850VDC input, with 240–960W output. Up to 97.1% efficiency ensures high power density in compact 43/52/80mm widths. Low losses support 80,000h+ service life.
  • RACPRO1-S single-phase DIN rail AC/DC series delivers 120W, 240W, and 480W in ultra-slim widths. With 12V, 24V, and 48V outputs, 150% peak power for 5s, up to 95% efficiency, and operation from -40°C to +70°C, it ensures reliable performance, easy tool-free installation, and durability in harsh industrial environments.
  • RACPRO1-4SP e-Fuses provide 4 independent channels with 5A/10A each, 150% boost, real-time monitoring, LEDs, and adjustable overload modes. Features include sequential startup, reverse shutdown, tool-free terminals, and >80,000h lifetime at 40°C.
  • RACPRO1-RD40 redundancy module enables n+1 DIN rail power with high-efficiency MOSFET gating diodes. Supporting up to 40A (60A/5s) from -40°C to +70°C, with just 140mV drop, it ensures reliable backup power. Compact at 43mm wide, it features tool-free mounting and push-in terminals.
  • REFIN DIN rail AC/DC series delivers 18W to 90W in industry-standard step-shape format with market-leading power density. Featuring up to 93.6% efficiency, universal AC/DC input, 150% boost (90W), parallel capability, and tool-free push-in wiring, it ensures flexible, high-reliability installation.
  • REDIIN DIN rail PSUs offer 120/240/480W in slim 30/40/56mm widths. Inputs: 90–264VAC, outputs: 12V (120W), 24V, 48V adjustable. Certified to IEC/EN/UL/CSA, EMC/industrial standards, with full protection. Operate -30°C to +50°C, derated to +70°C, startup at -40°C.
Vista
Mostrar productos fabricados por RECOM
Distribuidor Autorizado
Visitar el sitio web
Información
Gama de productos Chat en vivo Soporte técnico
Guías de productos

9 RESULTADOS DEL PRODUCTO PARA ""

Filter Results

9 Productos

    RACPRO1-4SP/24V/10A
    Hoja de datos
    RACPRO1-4SP/24V/10A RECOM
    4-Channel 10A e-Fuse
    VER PRODUCTO
    En stock: 5
    Se envía de inmediato
    1
    $96.15
    5
    $92.43
    10
    $90.46
    20
    $88.64
    50
    $87.52
    RACPRO1-4SP/24V/5A
    Hoja de datos
    RACPRO1-4SP/24V/5A RECOM
    4-Channel 5A e-Fuse
    VER PRODUCTO
    En stock: 5
    Se envía de inmediato
    1
    $83.65
    5
    $80.42
    10
    $79.25
    20
    $77.12
    50
    $76.14
    RACPRO1-T240/24
    Hoja de datos
    RACPRO1-T240/24 RECOM
    The RACPRO1-T240/24 is a 240W, 24VDC DIN-rail AC/DC power supply that accepts a three-phase 320-575VAC input.
    VER PRODUCTO
    En stock: 5
    Se envía de inmediato
    1
    $113.31
    5
    $108.93
    10
    $106.60
    20
    $104.46
    50
    $103.13
    RACPRO1-T480/24
    Hoja de datos
    RACPRO1-T480/24 RECOM
    The RACPRO1-T480/24 is a 480W, 3-phase AC/DC DIN-rail power supply that converts a 320-575 VAC input to a 24 VDC ...
    VER PRODUCTO
    En stock: 3
    Se envía de inmediato
    1
    $177.27
    5
    $172.35
    10
    $169.99
    20
    $169.56
    50
    $163.28
    RACPRO1-T480/48
    Hoja de datos
    RACPRO1-T480/48 RECOM
    480W AC/DC-Converter - DIN Rail - IP20 - 5kV - Regulated
    VER PRODUCTO
    7 Semanas
    1
    $177.27
    5
    $172.35
    10
    $169.99
    20
    $169.56
    50
    $163.28
    RACPRO1-T960/24
    Hoja de datos
    RACPRO1-T960/24 RECOM
    The RACPRO1-T960/24 is a 960W, three-phase AC/DC DIN-rail power supply that converts a 320-575 VAC input to a 24 ...
    VER PRODUCTO
    A pedido: 5
    puede enviar 6/15/26
    1
    $256.29
    3
    $249.17
    5
    $248.54
    10
    $245.75
    20 +
    $239.20
    RACPRO1-T960/48
    Hoja de datos
    RACPRO1-T960/48 RECOM
    960W AC/DC-Converter - DIN Rail - IP20 - 5kV - Regulated
    VER PRODUCTO
    7 Semanas
    1
    $256.29
    3
    $249.17
    5
    $248.54
    10
    $245.75
    20 +
    $239.20
    RACPRO1-RD40
    Hoja de datos
    RACPRO1-RD40 RECOM
    40A Redundancy Module
    VER PRODUCTO
    7 Semanas
    1
    $122.53
    5
    $113.39
    10
    $108.53
    20
    $104.07
    50
    $101.29
    REFIN2U-S90/24/CL
    Hoja de datos
    REFIN2U-S90/24/CL RECOM
    AC-DC Power Supply - 90W - 24VDC - Input:85-276VAC - DIN Rail - IP20 - 3kV - Regulated
    VER PRODUCTO
    7 Semanas
    8
    $87.12
    15
    $57.18
    23
    $44.29
    30 +
    $43.40
