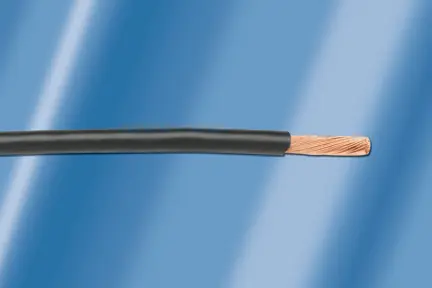

The 5854/7-WH005 is a single-conductor hookup wire featuring 24 AWG (7/32) stranded bare copper conductor with 0.010" nominal PTFE insulation wall, designed for high-temperature and high-voltage applications. It is rated for 600 V RMS and operates across a temperature range of -60°C to +200°C, meeting UL AWM/STYLE 1213 (105°C) and MIL-W-16878/4 Type E (200°C/600 V RMS) specifications. The wire exhibits a nominal inductance of 0.05 µH/ft and a conductor DC resistance of 23.6 O/1000 ft at 20°C, with a maximum pull tension of 3.5 lbs and a minimum bend radius of 10 times the cable diameter. This wire is ideal for aerospace, military, industrial control, and high-temperature instrumentation applications where reliable insulation and voltage performance are critical.
