Aptiv (formerly Delphi)Connector - 3 Contact - Female - APEX 2.8 Sealed Black .. Ver descripción completa
Atributo del producto
Valor de atributo
Seleccionar atributo
Productos Encontrados: 0
Proveedor:
Aptiv (formerly Delphi)
Nº de pieza:
10757671
RoHS:
Yes
HTS:
8538900100
COO:
MX
ECCN:
EAR99
Paquete estándar del proveedor
500

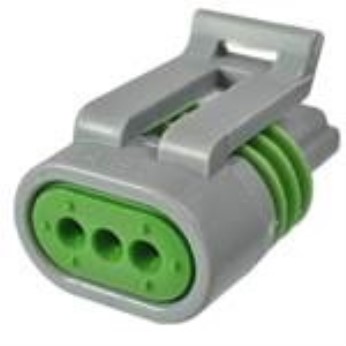

10757671 is a 3-way female sealed connector from the APEX 2.8 Sealed Series, designed for heavy-duty automotive applications. It features a compact 2.8 mm blade size with dimensions of 28.2 x 21.9 x 40.1 mm (W x H x D), mat sealed construction providing IP68 environmental protection, and operates within a temperature range of -40°C to +150°C. The connector supports wire sizes from 0.75 mm² (20 AWG) to 4 mm² (10 AWG) and includes Primary Lock Reinforcement (PLR) for secure terminal retention. It meets or exceeds USCAR performance standards and GMW3191, making it ideal for sealed inline and device applications in demanding automotive environments.
Palabras clave de búsqueda:
10757671
EN STOCK:
0
A la orden:
1.477
puede enviar 6/10/26
Cantidad mínima de pedido:
25
Plazo de entrega de fábrica
14 Semanas
Precio (USD)
Cantidad
Precio por unidad
Precio Ext.
25
$1.367
$34.175
250
$1.045
$261.250
500
$1.024
$512.000
1.000
$1.019
$1,019.000
2.500
$1.014
$2,535.000
5.000
$1.009
$5,045.000
7.500
$1.004
$7,530.000
10.000
+
$0.999
$9,990.000
