2307-V-RC

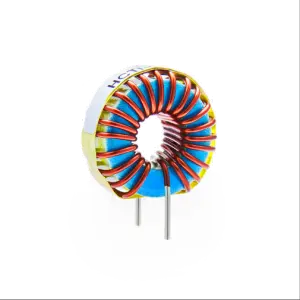

BournsInductor High Current Toroid 33uH/21.3uH 15% 1KHz 11.7A 13mOhm DCR RDL .. Ver descripción completa
Atributo del producto
Valor de atributo
Seleccionar atributo
Productos Encontrados: 0
Proveedor:
Bourns
Nº de pieza:
2307-V-RC
RoHS:
Yes
HTS:
8504508000
COO:
HN
ECCN:
EAR99
Paquete estándar del proveedor
50
Tipo de paquete:
BULK
Inductance:
33(OCL)/21.3 uH
Type:
High current
Impedance:
N/A
Lead Pitch:
13.46 mm
Tolerance:
15 %
Technology:
Toroid
Maximum DC Resistance:
13 mOhm
Maximum DC Current:
11.7 A
Protection Style:
N/A
Packaging:
N/A
The 2307-V-RC is a high-current toroid inductor designed for DC/DC converter and EMI filter applications with vertical mounting capability. It features an inductance of 33 µH at 1 kHz with a tolerance of ±15%, a rated DC current of 11.7 A, and a DC resistance of 0.013 O maximum. The device exhibits low radiation and low core loss characteristics, with dimensions of 0.53 in. (A) × 1.14 in. (B) × 0.053 in. (C), and operates reliably across a temperature range of -55°C to +105°C. This inductor is ideal for power supply designs requiring high current capacity with minimal thermal rise and is RoHS compliant for environmentally conscious applications.
Palabras clave de búsqueda:
2307VRC
EN STOCK:
1.000
Buques today, Si realiza un pedido en
Cantidad mínima de pedido:
50
Múltiple:
50
Plazo de entrega de fábrica
32 Semanas
Precio (USD)
Cantidad
Precio por unidad
Precio Ext.
50
$1.95
$97.50
100
$1.89
$189.00
250
$1.82
$455.00
500
$1.79
$895.00
1.000
$1.76
$1,760.00
2.500
$1.73
$4,325.00
5.000
$1.71
$8,550.00
7.500
+
$1.70
$12,750.00
FICHA TÉCNICA
Bourns Profile
