CU-3281
Bud IndustriesBlack Thermoplastic Bracket Mount Utility Box - External 4.6 x 3.1 x 1.87 Inches - Internal 4.34 x 2.84 x 1.67 Inches .. Ver descripción completa
Atributo del producto
Valor del atributo
Seleccionar atributo
Productos Encontrados: 0
Proveedor:
Bud Industries
Nº de pieza:
CU-3281
RoHS:
Yes
HTS:
8538100000
COO:
US
ECCN:
EAR99
Empaque estándar del proveedor
1
Material del cuerpo:
Thermoplastic
Color del Cuerpo:
Black
Ancho del Producto (Métrico):
78.74 mm
Montaje:
Bracket Mount
Categoría:
Box
CU-3281 is an ABS thermoplastic utility box enclosure designed for general-purpose electronic housing applications. This Style A enclosure features external dimensions of 4.690" x 3.190" (A x G) with internal dimensions of 4.404" x 2.904" at the top (C x J) and a depth of 1.772" (R). The body and standard cover are constructed from ABS thermoplastic with a UL94-5VA flammability rating and black textured finish. The enclosure includes four #4-40 threaded inserts with supplied screws for cover assembly and mounting bosses compatible with M2.5 metric or #4 standard sheet metal screws. This utility box is ideal for housing electronic circuits, control systems, and other components requiring a durable, flame-retardant enclosure.
Palabras clave de búsqueda:
CU3281
EN STOCK:
70
Envío today, Introduzca el valor de la configuración.
Cantidad mínima de pedido:
5
Plazo de entrega de fábrica
2 Semanas
Precio (USD)
Cantidad
Precio unitario
Precio total
5
$11.98
$59.90
25
$7.98
$199.50
50
$7.52
$376.00
100
$6.68
$668.00
250
$6.17
$1,542.50
500
$6.08
$3,040.00
1.000
$6.06
$6,060.00
2.500
+
$6.05
$15,125.00
Guías de productos
Los clientes
también compraron
850F150E
Res Wirewound 150 Ohm 1% 50W ±20ppm/°C Aluminum Housed AXL Chassis Mount
RS-25-24
AC/DC Power Supply - 1 Output - 24V@1.1A - 25W
105308-1208
NanoFit TPA Recp Hsg Dual Row 8Ckt Blk

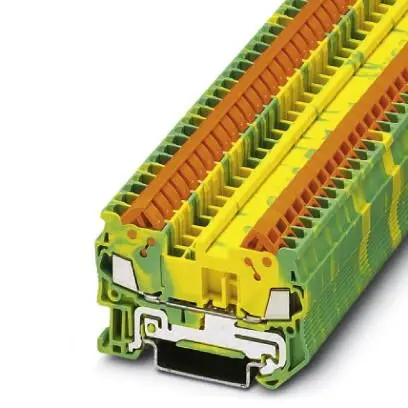

3205035
