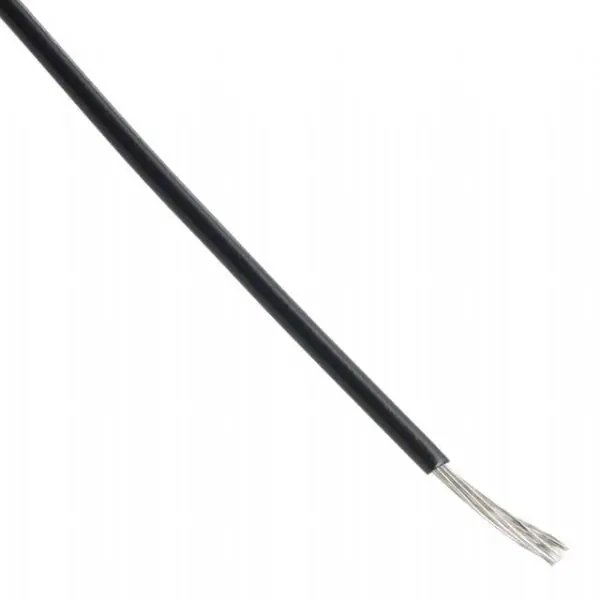

The 1569-24-1-0500-004-1-TS is a 24 AWG tinned copper PVC-insulated wire designed for high-temperature electrical applications. It features a tinned stranded copper conductor with 11/0 strands of 160 mm length, an overall diameter of 1.45±0.10 mm, and an insulation thickness of 0.38 mm, providing robust mechanical and electrical performance. The wire is rated for continuous operation at 105°C with a maximum voltage of 300V and demonstrates excellent dielectric strength of 2000 VAC/min, along with resistance to oil, heat, cold, and flexing. It carries dual-rated AWM certification for use in both USA and Canada (UL File No. E108485, CSA File No. LL84687) and passes the VW-1 flame test, making it suitable for applications in electric cookers, hair dryers, internal transformer coils, air-conditioners, and lighting fixtures. The wire is RoHS compliant and available in 500 ft reels.
