4600N
ebm-papstAC Fans AC Tubeaxial Fan, 119x119x38mm, 115VAC, 105.9CFM, 18W, 3100RPM, 50dBA, Sintec Bearing .. Ver descripción completa
Atributo del producto
Valor de atributo
Seleccionar atributo
Productos Encontrados: 0
Proveedor:
ebm-papst
Nº de pieza:
4600N
RoHS:
Yes
HTS:
8414596090
COO:
CN
ECCN:
EAR99
Paquete estándar del proveedor
1
Tipo de paquete:
Box
Category:
AC Fan
Dimension:
119 x 119 x 38 mm
Voltage Rating:
115 V
Power Rating:
18 W
Maximum Airflow:
105 CFM
Noise Level:
50 dB
Special Features:
None
Termination:
Terminal
Housing Material:
DieCast Aluminum
Operating Temperature:
-10 to 60 °C
4600N is AC fans with external rotor shaded-pole motor. Impedance protected against overloading. Metal fan housing and impeller.
Air intake over struts. Direction of rotation clockwise, seen on rotor.
Electrical connection via 2 flat plugs 3.0 x 0.5 mm.
Impeller with 3 or 5 blades, see note for fan type.
Optionally available: Models with reinforced flanges and single leads.
Fan housing with grounding lug for screw M 4 and UNC.
Mass: 550 g.
Please note our new ACmaxx Series. With identical mounting dimensions and voltages, this Series achieves higher energy efficiency. Voltage - Rated 115VAC
Size / Dimension Square - 119mm L x 119mm H
Width 38.00mm
Air Flow 106.0 CFM (2.97m³/min)
Bearing Type Sintec
Fan Type Tubeaxial
Noise 50.0 dB(A)
Power (Watts) 18.00W
RPM 3100 RPM
Termination 2 Terminals
Operating Temperature 14 ~ 140°F (-10 ~ 60°C)
Palabras clave de búsqueda:
4600N
EN STOCK:
243
Puede enviar inmediatamente
A la orden:
500
puede enviar 5/28/26
Plazo de entrega de fábrica
24 Semanas
Precio (USD)
Cantidad
Precio por unidad
Precio Ext.
1
$39.14
$39.14
5
$35.37
$176.85
10
$28.58
$285.80
25
$27.94
$698.50
50
$27.59
$1,379.50
100
$27.52
$2,752.00
250
+
$26.58
$6,645.00
Guías de productos
Accesorios
LZ30-6
Thrml Mgmt Access Finger Guard Plastic

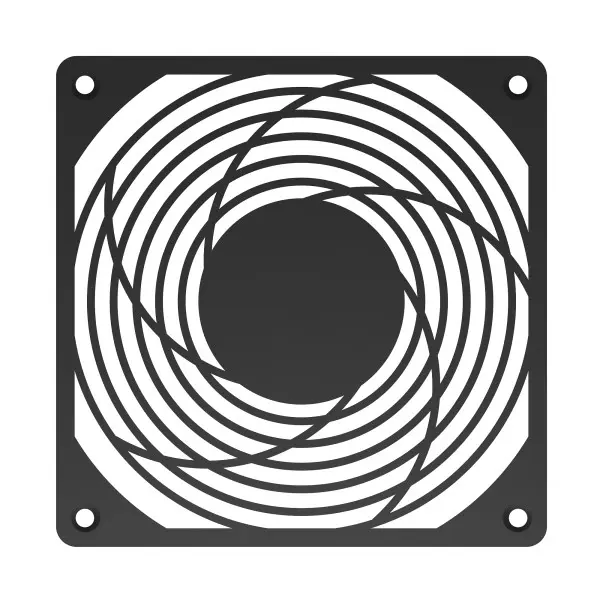

LZ30-5
Fan Accessories Plastic Finger Guard (PPO) for 4000/9000 Series - Screw Connection - 119mm ...
LZ30P
Finger Guard Plastic - 120mm Square (Note: The ebm-papst version sold in Europe is 127mm ...

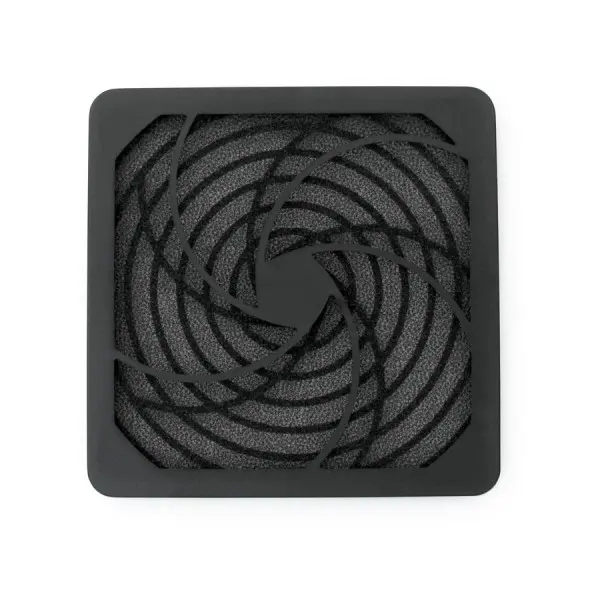

10021-1-5170
.25 Plastic Filter with Foam pad

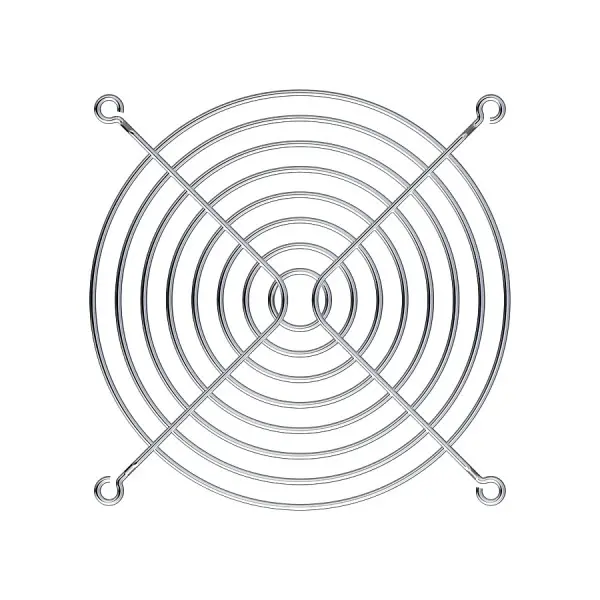

LZ30
Fan Accessories Metal Finger Guard for 120mm Fans, 8-Ring
LZ120
Cable Assembly Plug and Cord Set - 0.61m - 21AWG - Power 2 POS PL Crimp.
LZ126
Plug And Cord Set
2678-2-2945
Plastic Fan Mount Clip - 119mm/120mm.
LZ210
Thrml Mgmt Access Screw Clip Steel
LZ60
Fan Accessories Filter for 4000/9000 Series - Stainless Steel Wire Mesh Filter.
LZ40N
Thrml Mgmt Access Fan Filter Screen Black
LZ40-1
Thrml Mgmt Access Bracket Black Plastic
SC120-W5
120mm Chrome Wire Fan Guard
SC120-P50
120mm EURO Plastic Fan Guard UL94V-0 Thur Holes
SC120-P15/30
120mm Plastic Filter Assembly 30PPI
HP100-24
Straight Fan Cord 24" - 18AWG
