13AC1 by honeywell
La imagen es representativa - ver especificaciones del fabricante
FICHA TÉCNICA

13AC1

Honeywell

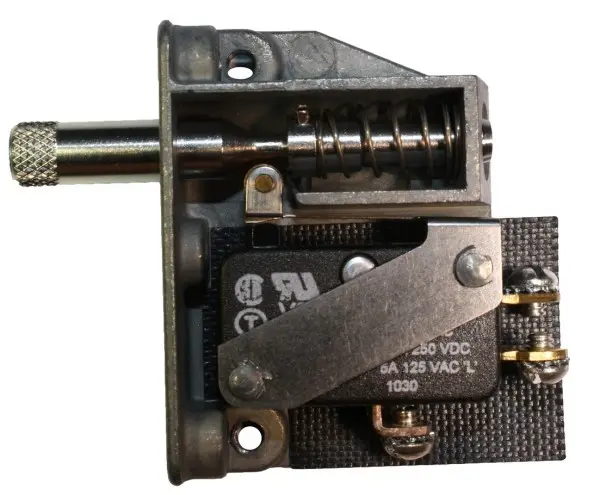

MICRO SWITCH™ Basic Switches: AC Series, Door Switch, Single Pole Double Throw (SPDT), 15 A at 250 Vac, Rod Actuator, Silver Contacts, Screw Termination .. Ver descripción completa

Cumple con RoHS
embalaje
Accesorios
Accesorios
This product is backed by Ecco Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee
Atributo del producto
Valor de atributo Seleccionar atributo
Productos Encontrados: 0
Proveedor:
Honeywell
Nº de pieza:
13AC1
RoHS:
Yes
HTS:
85365000
COO:
MX
ECCN:
EAR99
Paquete estándar del proveedor Esta información se proporciona a los clientes que prefieren comprar en múltiplos de la cantidad del paquete estándar del fabricante. Las cantidades mínimas de pedido y los múltiplos de pedido requeridos se presentan con nuestra información de precios y d
200
Type:
Door Interlock
Actuator Style:
Rod
Pole Throw Configuration:
SPDT
Maximum Current Rating:
15@250VAC A
Terminal Type:
Screw
Operating Temperature:
-55 to 149 °C
IP Rating:
N/A
Dimension:
56.31 x 12.7 x 45.97 mm
Switch Configuration:
N.O./N.C.
Body Orientation:
Straight
The HONEYWELL part 13AC1 is a MICRO SWITCH„¢ Basic Switch that is specifically designed for door switch applications. It features a Single Pole Double Throw (SPDT) configuration, allowing for versatile switching capabilities. With a current rating of 15 A at 250 Vac, it is capable of reliable performance in high voltage applications. The switch is activated by a rod actuator, providing a straightforward and effective means of triggering the switch. The silver contacts ensure superior conductivity and durability. It is equipped with screw termination for secure and convenient wiring connections. Trust the HONEYWELL part 13AC1 to deliver consistent and reliable performance in door switch applications.
Características destacadas del producto:
  • Automatically cuts power when service door or drawer is opened
  • Choice of momentary, maintained or pull-to-cheat actuation
  • Versatile mounting bracket for side or end mounting
  • Current rating ranges from 5 A to 25 A
  • Available with one or two SPDT switches
  • UL recognized versions available
  • Choice of termination
Aplicaciones potenciales:
<ul><li>Appliances</li><li>Vending machines</li><li>Office equipment</li><li>Computer/business equipment</li><li>Test instruments</li><li>Medical/dental equipment</li><li>Communications equipment</li><li>HVAC equipment</li></ul>
Palabras clave de búsqueda:
13AC1
EN STOCK: 557
Puede enviar inmediatamente
Plazo de entrega de fábrica
5 Semanas
Precio (USD)
Cantidad
Precio por unidad
Precio Ext.
1
$75.01
$75.01
5
$72.69
$363.45
10
$68.56
$685.60
20
$67.88
$1,357.60
50
$58.10
$2,905.00
200 +
$56.03
$11,206.00
Suppliers Standard Package
Haga clic para obtener una cotización
