1TW1-2
HoneywellMICRO SWITCH™ Miniature Toggle Switches: TW Series, Single Pole Single Throw (SPST) 2 Position (Off - On), Solder Terminals, 1/4 Inch Bushing, Standard Lever, Military Part Number MS27716-22-1 .. Ver descripción completa
Atributo del producto
Valor del atributo
Seleccionar atributo
Productos Encontrados: 0
Proveedor:
Honeywell
Nº de pieza:
1TW1-2
Alias/también conocido como:
MS27716-22-1
RoHS:
Yes
HTS:
85365000
COO:
US
ECCN:
EAR99
Empaque estándar del proveedor
1
Configuración de Polos y Vías:
1P1T (SPST)
Configuración del Interruptor:
OFF None ON
Capacidad de Contacto @ Tensión:
5 A
Estilo de actuador:
Round Lever
Montaje:
Panel Mount with Threads
Tamaño de Rosca:
1/4-40
Orientación del Cuerpo:
Straight
Tipo de Terminal:
Solder
Dimensión:
14.5 x 8.9 x 33.4 mm
Temperatura de Funcionamiento:
-65 to 71 °C
<p>The 1TW1-2 Honeywell Toggle Switch has pull-to-unlock lever to prevent accidental operation. It comes with molded-in terminals that are plated for soldering. The TW series toggle switches have a durable design that is suited for any military, aerospace and other demanding applications where there is limited space behind the panel. These include environments where panels are prone to mechanical shock, vibration, dust, splashing and temperature extremes. Toggle Switches are manually actuated by means of a projecting lever, such as mechanical lever, handle or a rocking mechanism. These electro mechanical switches are available in many different styles and sizes. They are also used in industrial machinery, construction equipment, and process control applications.</p>
<p>The 1TW1-2 Honeywell Toggle Switch is available with environment-proof sealing to withstand potentially demanding requirements. It comes with SPST circuitry configuration. The TW series toggle switches come with a choice of 1 and 2 pole options and 2 and 3 position, maintained and momentary toggle action to provide for a wide range of circuitry and actuator requirements.</p>
Características destacadas:
- Sealed bushing versions
- Color tab available on 15/32 in. bushing
- UL recognized
- Qualified to MIL-DTL-83731
- Save space and weight
- SPDT and DPDT circuitry
Aplicaciones potenciales:
<ul><li>Industrial machinery and equipment</li><li>Military and commercial aviation</li><li>Construction equipment</li><li>Test instruments</li><li>Agricultural machinery</li><li>Process control</li><li>Medical instrumentation</li></ul>Palabras clave de búsqueda:
1TW12
EN STOCK:
73
Puede enviar inmediatamente
Plazo de entrega de fábrica
7 Semanas
Precio (USD)
Cantidad
Precio unitario
Precio total
1
$355.58
$355.58
5
$322.96
$1,614.80
10
$303.98
$3,039.80
20
$298.68
$5,973.60
50
$286.50
$14,325.00
100
+
$284.46
$28,446.00
Haga clic para solicitar una cotización
Los clientes
también compraron
MF-R040
PTC Resettable Fuse 0.4A(hold) 0.8A(trip) 60V 40A 0.55W 3.8s 0.52Ohm Radial 7.4 X 3.1mm Ba...
37TB12F
Panel Mount Barrier Terminal Block - 2 Row - 12 Positions - 16 AWG - 9.5 mm - 15 A.
MF25100V1-1000U-A99
Fan Tubeaxial - 5VDC - Square - 25mm L x 25mm H - Vapo-Bearing™ - 3.5 CFM (0.098m³/min) - ...
M24308/2-15F
Recept 78 Pos Skt

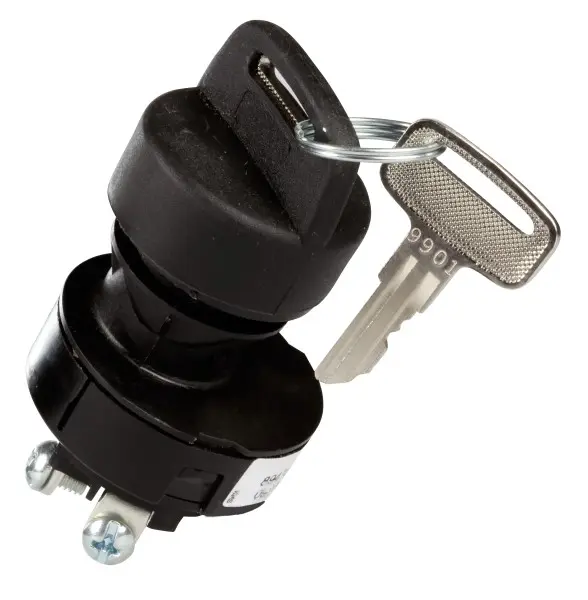

89476-08
