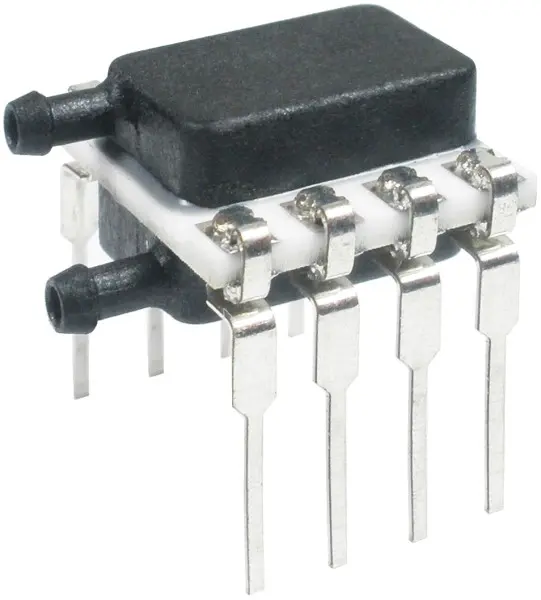

HSCDRRN002NDAA5 by honeywell
La imagen es representativa - ver especificaciones del fabricante
FICHA TÉCNICA

HSCDRRN002NDAA5

Honeywell

TruStability® Board Mount Pressure Sensor - Compensated/Amplified: HSC Series, High Accuracy, ± 1.5% Total Error Band, DIP, Dual Radial Barbed Ports, Same Side, 2 inH₂O Differential, Amplified Analog Output, 10% to 90% Vdd, 5 V Supply, Dry Gases Only, No Special Options .. Ver descripción completa

Cumple con RoHS
embalaje
Accesorios
Accesorios
This product is backed by Ecco Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee
Atributo del producto
Valor de atributo Seleccionar atributo
Productos Encontrados: 0
Proveedor:
Honeywell
Nº de pieza:
HSCDRRN002NDAA5
RoHS:
Yes
HTS:
90262000
COO:
CN
ECCN:
EAR99
Paquete estándar del proveedor Esta información se proporciona a los clientes que prefieren comprar en múltiplos de la cantidad del paquete estándar del fabricante. Las cantidades mínimas de pedido y los múltiplos de pedido requeridos se presentan con nuestra información de precios y d
50
Mounting:
PCB Through Hole 90 °
Accuracy:
±0.25 %
Device Pressure Type:
Differential
Operating Pressure Range:
2 to o2 inH2O
Media:
Air,Gas
Output Voltage:
0.5 to 4.5 V
Response Time:
1 mS
Typical Operating Supply Voltage:
5 V
Operating Temperature:
-20 to 85 °C
Dimension:
6.16 mm
<p>A pressure sensor is an electromechanical pressure-sensing device which detects the pressure applied and converts it into an electrical signal. Board Mount Pressure Sensors are designed for various industrial and mechanical applications that perform according to the changing pressure. This differential pressure sensor is used in a variety of medical and industrial applications such as ventilators, anesthesia machines, hospital room air pressure, VAV control, HVAC transmitters and indoor air quality. </p><p>HSCDRRN002NDAA5 Board Mount Pressure Sensor from Honeywell delivers long-term stability and offers design flexibility with a variety of package styles. This Honeywell sensor minimizes system calibration needs and maximizes system performance.</p>
Características destacadas del producto:
  • Propriety Honeywell technology: Combines high sensitivity with high overpressure and burst pressure two performance factors that are difficult to achieve in the same product.
  • Industry-leading long-term stability: Even after long-term use and thermal extremes, these sensors perform substantially better relative to stability than any other pressure sensor available in the industry today.
  • Industry-leading Total Error Band (TEB): Honeywell specifies the most comprehensive, clear, and meaningful measurement
  • Industry-leading accuracy: Reduces software needs to correct system inaccuracies
Palabras clave de búsqueda:
HSCDRRN002NDAA5
EN STOCK: 97
Puede enviar inmediatamente
Plazo de entrega de fábrica
12 Semanas
Precio (USD)
Cantidad
Precio por unidad
Precio Ext.
1
$54.65
$54.65
5
$51.32
$256.60
10
$49.88
$498.80
25
$47.99
$1,199.75
50
$46.56
$2,328.00
100
$45.12
$4,512.00
250 +
$39.10
$9,775.00
Suppliers Standard Package
Haga clic para obtener una cotización
