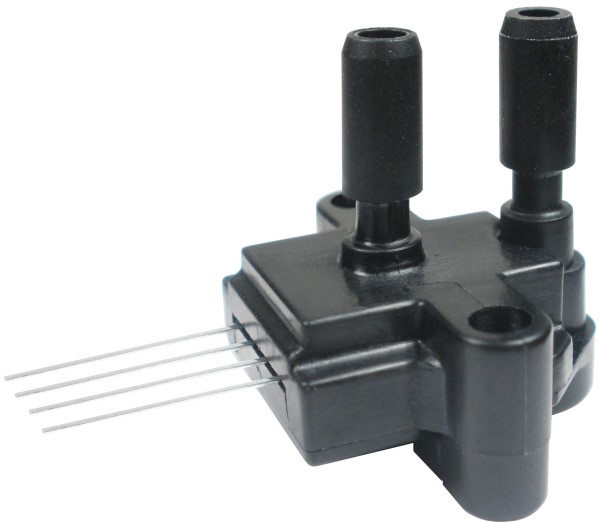

SSCSNBN001NDAA5 by honeywell
La imagen es representativa - ver especificaciones del fabricante
FICHA TÉCNICA

SSCSNBN001NDAA5

Honeywell

TruStability® Board Mount Pressure Sensor - Compensated/Amplified: SSC Series, Standard Accuracy, ± 5% Total Error Band, SIP, Fastener Mount Dual Axial Ports, Same Side, 1 inH₂O Differential, Amplified Analog Output, 10% to 90% Vdd, 5 V Supply, Dry Gases Only, No Special Options .. Ver descripción completa

Cumple con RoHS
embalaje
Accesorios
Accesorios
This product is backed by Ecco Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee
Atributo del producto
Valor de atributo Seleccionar atributo
Productos Encontrados: 0
Proveedor:
Honeywell
Nº de pieza:
SSCSNBN001NDAA5
RoHS:
Yes
HTS:
90262080
COO:
CN
ECCN:
EAR99
Paquete estándar del proveedor Esta información se proporciona a los clientes que prefieren comprar en múltiplos de la cantidad del paquete estándar del fabricante. Las cantidades mínimas de pedido y los múltiplos de pedido requeridos se presentan con nuestra información de precios y d
50
Mounting:
PCB Through Hole 90 °
Accuracy:
±0.25 %
Device Pressure Type:
Differential
Operating Pressure Range:
-1 to 1 inH2O
Media:
Air,Gas
Output Voltage:
0.5 to 4.5 V
Response Time:
1 mS
Typical Operating Supply Voltage:
5 V
Operating Temperature:
-40 to 85 °C
Dimension:
27.31 x 25.3 x 22.87 mm
<p> The Honeywell SSCSNBN001NDAA5 Board Mount Pressure Sensor comes with long-term stability, reliability, a high accuracy of ±0.25 %FSS BFSL and energy-efficiency. A pressure sensor is an electromechanical pressure-sensing device which detects the pressure applied and converts it into an electrical signal. Board Mount Pressure Sensors are designed for various industrial and mechanical applications that perform according to the changing pressure. This industrial pressure sensor is used in a wide range of applications including medical and industrial applications such as anesthesia machines, nebulizers, blood analysis machines, oxygen concentrators, kidney dialysis machines, respiratory machines, hospital room air pressure, ventilators, barometry, life sciences, pneumatic control, indoor air quality, HVAC transmitters, etc.</p> <p> The Honeywell TruStability Standard Accuracy Silicon Ceramic (SSC) Series is a piezoresistive silicon pressure sensor providing ratiometric analog or digital output for reading pressure over the specified full scale pressure span and temperature range. These sensors measure absolute, gauge, or differential pressures. The SCSNBN001NDAA5 Honeywell sensor
Características destacadas del producto:
  • Maximizes system performance
  • Reduces power consumption
  • Provides extended battery life
  • Promotes energy efficiency
  • Minimizes system calibration needs
  • Helps support system uptime by eliminating the need to service or replace the sensor during its application life
  • Internal diagnostic functions: Increases system reliability
Palabras clave de búsqueda:
SSCSNBN001NDAA5
EN STOCK: 420
Puede enviar inmediatamente
MOQ para cantidad agotada:
25
Plazo de entrega de fábrica
18 Semanas
Precio (USD)
Cantidad
Precio por unidad
Precio Ext.
1
$130.21
$130.21
5
$107.44
$537.20
10
$104.06
$1,040.60
25
$99.78
$2,494.50
50
$98.79
$4,939.50
75
$97.81
$7,335.75
100 +
$96.84
$9,684.00
Haga clic para obtener una cotización
