NAC3FCA by neutrik
Imagen de referencia - consulte las especificaciones del fabricante
FICHA TÉCNICA

NAC3FCA

NEUTRIK

powerCON 20 A - Lockable cable connector - power-in - screw terminals - blue The powerCON is a locking 3 conductor equipment AC connector with contacts for line - neutral and pre-mating ground contact. It replaces appliance couplers wherever a very rugg .. Ver descripción completa

Cumple con RoHS
embalaje
Accesorios
Descontinuado y reemplazado
Accesorios
This product is backed by Ecco Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Garantía del certificado de conformidad
Atributo del producto
Valor del atributo Seleccionar atributo
Productos Encontrados: 0
Proveedor:
NEUTRIK
Nº de pieza:
NAC3FCA
RoHS:
Yes
HTS:
8536694020
COO:
LI
ECCN:
EAR99
Empaque estándar del proveedor Esta información se proporciona a los clientes que prefieren comprar en múltiplos de la cantidad del paquete estándar del fabricante. Las cantidades mínimas de pedido y los múltiplos de pedido requeridos se presentan con nuestra información de precio y disponibilidad.
1
Tipo:
Power
Orientación del Cuerpo:
Straight
Montaje:
Cable Mount
Género:
F
Número de Contactos:
3
Método de terminación:
Screw/Solder
Tensión Máxima Nominal:
250 V
Corriente Nominal Máxima:
20/Contact A
Temperatura de Funcionamiento:
-30 to 80 °C
Ciclo de vida:
Descontinuado y reemplazado
The NAC3FCA is Lockable cable connector, power-in, screw terminals, blue The NAC3FCA has rated voltage of 250 V ac and rated current per contact of 20 A rms and dielectric strength of 4 kVdc / 2.8 kVac. The powerCON is a locking 3 conductor equipment AC connector with contacts for line, neutral and pre-mating ground contact. It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed in order to guarantee a safe power connection.<br/><br/><strong>Attention:</strong> The powerCON is a connector without breaking capacity, i.e. the powerCON should not be connected or disconnected under load or live!
Características destacadas:
  • Locking 20 A / 250 V ac appliance coupler
  • 3 contacts for line, neutral and premating safety ground
  • power-in (blue) and power-out (grey) versions with different keying to avoid the possibility of intermating
  • Fast and easy twist lock latching system
  • Extremely robust and reliable
  • Ergonomic design
  • User friendly latch design for easy handling
  • Unique Neutrik chuck type strain relief
  • Branded with unique hologram - guarantees genuine and authentic Neutrik product
Palabras clave de búsqueda:
NAC3FCA
  Este producto está descontinuado, pero aún está en stock
EN STOCK: 1.325
Puede enviar inmediatamente
Cantidad mínima de pedido:
11
Precio (USD)
Cantidad
Precio unitario
Precio total
11
$11.53
$126.83
30
$10.57
$317.10
50 +
$9.06
$453.00
Reemplazo recomendado

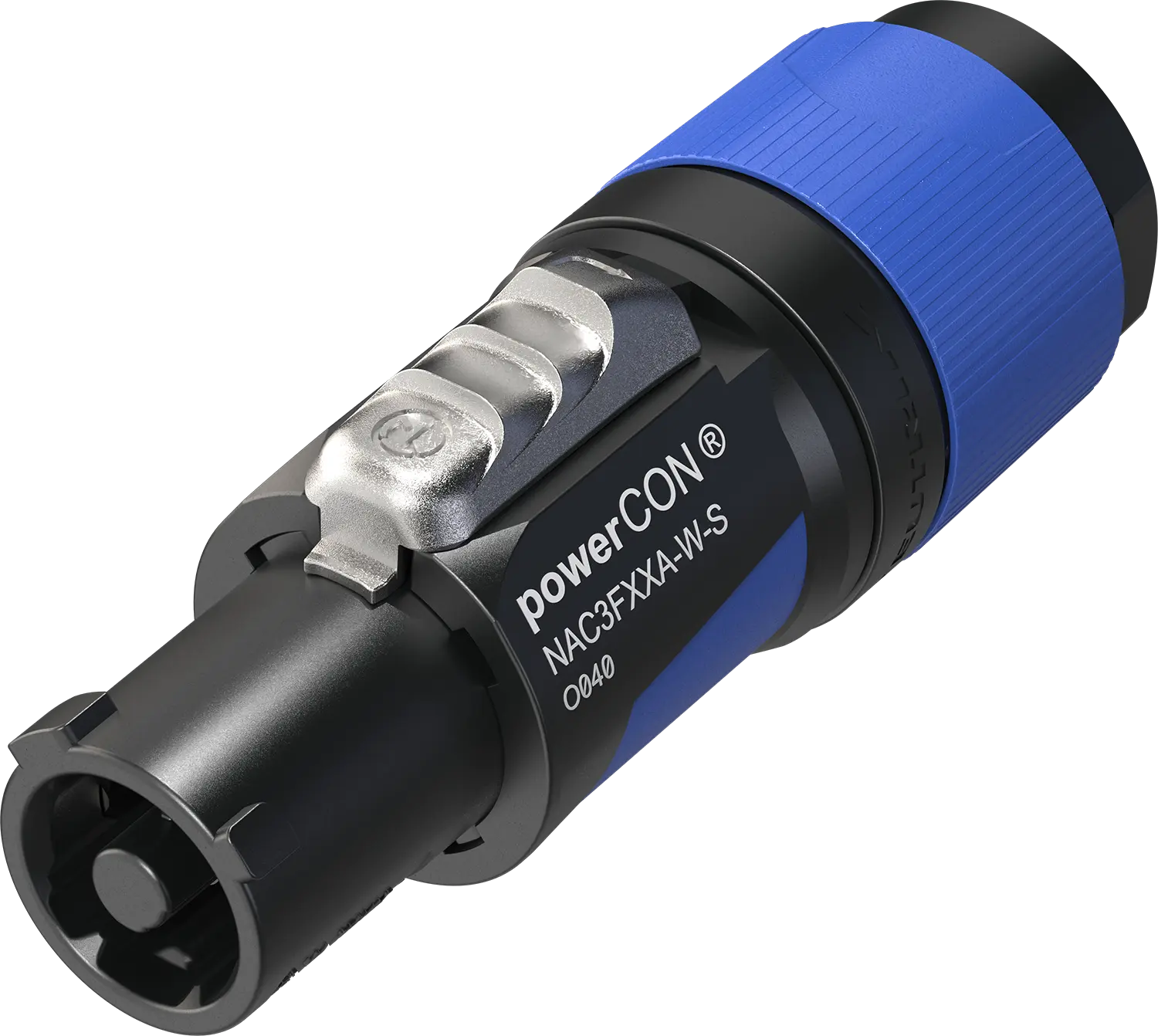

NAC3FXXA-W-S
NAC3FXXA-W-S
VER PRODUCTO
