NC3MXX-B by neutrik
La imagen es representativa - ver especificaciones del fabricante
FICHA TÉCNICA

NC3MXX-B

NEUTRIK

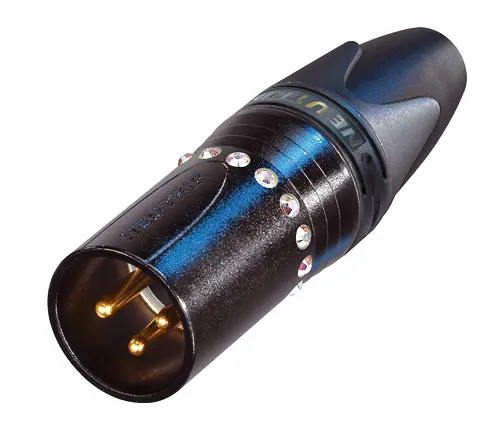

XX Series - 3 pole male cable connector with black metal housing and gold contacts The next generation of the worldwide accepted standard of XLR cable connectors. The successor of the X series offers several new features which make it more reliable - ea .. Ver descripción completa

Cumple con RoHS
embalaje
Accesorios
Accesorios
This product is backed by Ecco Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee
Atributo del producto
Valor de atributo Seleccionar atributo
Productos Encontrados: 0
Proveedor:
NEUTRIK
Nº de pieza:
NC3MXX-B
RoHS:
Yes
HTS:
8536694020.00
COO:
LI
ECCN:
EAR99
Paquete estándar del proveedor Esta información se proporciona a los clientes que prefieren comprar en múltiplos de la cantidad del paquete estándar del fabricante. Las cantidades mínimas de pedido y los múltiplos de pedido requeridos se presentan con nuestra información de precios y d
100
Type:
XLR Connector
Gender:
M
Body Orientation:
Straight
Mounting:
Cable Mount
Housing Material:
Metal
Number of Contacts:
3
Contact Plating:
Gold Alloy Over Nickel
Termination Method:
Solder
Operating Temperature:
-30 to 80 °C
The NC3MXX-B is 3 pole male cable connector with black metal housing and gold contacts The NC3MXX-B has rated voltage of < 50 V and rated current per contact of 16 A and dielectric strength of 1,5 kVdc . The next generation of the worldwide accepted standard of XLR cable connectors. The successor of the X series offers several new features which make it more reliable, easier to assemble and improves contact integrity as well cable strain relief.
Características destacadas del producto:
  • Male connector with improved locking recess without "window", more stringent housing increases durability
  • Improved chuck type strain relief provides higher pull-out force and makes assembly easier and faster
  • Boot with polyurethane gland gives high protection to cable bending stresses
  • Colored rings and boots available for coding or identification
  • Sleek and ergonomic design - valuable and handy
  • Rugged zinc diecast shell, longlasting and dependable
  • Internal thread on shell is well proteced against any damage
Palabras clave de búsqueda:
NC3MXXB
  Posibles opciones de reemplazo disponibles.  Ver Alternativas
EN STOCK: 293
Puede enviar inmediatamente
Cantidad mínima de pedido:
5
Plazo de entrega de fábrica
3 Semanas
Precio (USD)
Cantidad
Precio por unidad
Precio Ext.
5
$8.44
$42.20
50
$5.22
$261.00
100
$4.92
$492.00
300
$4.55
$1,365.00
500
$4.39
$2,195.00
1.000
$4.18
$4,180.00
2.500
$4.17
$10,425.00
5.000 +
$4.16
$20,800.00
