NL4MP

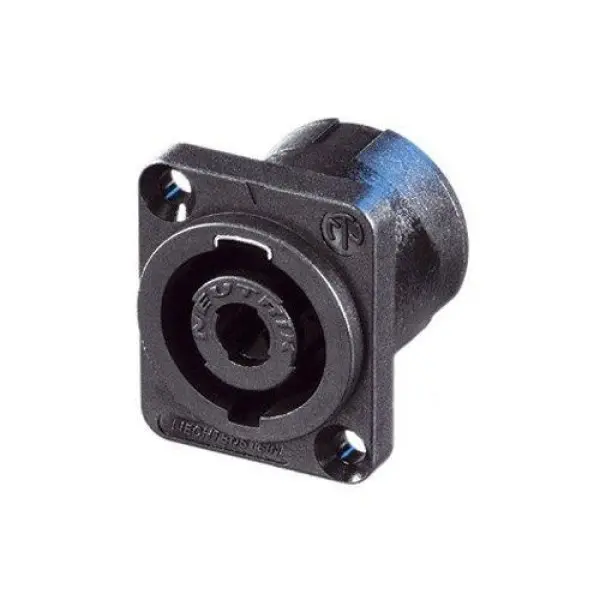

NEUTRIKspeakON Chassis Connectors - 4 pole chassis connector - black D-size flange - countersunk thru holes - 3/16" flat tabs The speakON panel mount connectors are the standard chassis connectors for loudspeaker / amplifier interconnections. They feature a un .. Ver descripción completa
Atributo del producto
Valor de atributo
Seleccionar atributo
Productos Encontrados: 0
Proveedor:
NEUTRIK
Nº de pieza:
NL4MP
RoHS:
Yes
HTS:
8536694040
COO:
LI
ECCN:
EAR99
Paquete estándar del proveedor
100
Type:
Loudspeaker Connector
Gender:
M
Body Orientation:
Straight
Mounting:
Panel Mount
Housing Material:
Polyamide 6/6
Number of Contacts:
4
Contact Plating:
Silver
Termination Method:
Solder
Operating Temperature:
-30 to 80 °C
Ciclo vital:
Descontinuado y reemplazado
The NL4MP is 4 pole chassis connector, black D-size flange, countersunk thru holes, 3/16" flat tabs The NL4MP has rated current per contact of 30 A rms continuous. The speakON panel mount connectors are the standard chassis connectors for loudspeaker / amplifier interconnections. They feature a unique metal locking system, making contact only once fully locked. The speakON receptacles are robust, versatile and easy to terminate.
Características destacadas del producto:
- Standard current rating 30 Amp
- High current version up to 50 Amp audio current
- Glass reinforced materials make it extremely robust and dependable
- Precise keyway for secure mating
- Accurate twist lock latching system
- Metal insert in locking area
- Airtight design - optimized for speaker applications
Palabras clave de búsqueda:
NL4MP
Este producto no está en stock y no se puede pedir en espera.
FICHA TÉCNICA
