84028651
Sensata / CrydomSOLID STATE RELAY 48-530 V - PM IP00 3P-SSR 530VAC/50A,3-32VDC,RN .. Ver descripción completa
Atributo del producto
Valor del atributo
Seleccionar atributo
Productos Encontrados: 0
Proveedor:
Sensata / Crydom
Nº de pieza:
84028651
RoHS:
Yes
HTS:
8536490080
Paquete estándar del proveedor
1
Tipo de salida:
AC
Tensión de Salida Máxima:
530(RMS) V
Corriente de Salida Máxima:
50(RMS) A
Dispositivo de Salida:
SCR
Tipo de Entrada:
DC
Tensión de Entrada:
32 V
Montaje:
Screw
Disposición del Circuito:
N/A
Dimensión:
103.9 x 79.7 x 35.4 mm
Ciclo vital:
Descontinuado y reemplazado

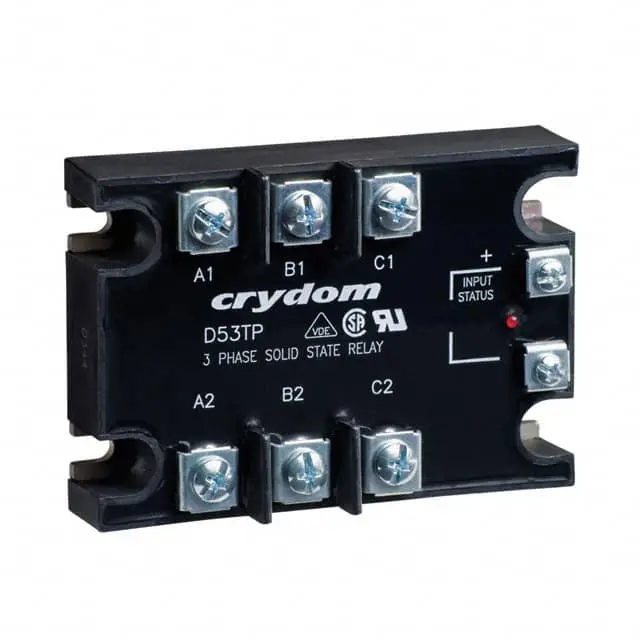

84028651 is a three-phase solid-state relay from the Crydom 53TP Series designed for heavy industrial load switching applications. It features SCR output with ratings of 25A or 50A per phase at 48-530 VAC operating voltage, built-in transient protection up to 1200 Vpk, and supports both zero-crossing and random-fire output modes. The relay offers a dielectric strength of 4000 Vrms between input/output/base, operates within an ambient temperature range of -40 to 80°C, and weighs approximately 10.3 oz (315g). With AC or DC control options, LED input status indicator, and UL Recognized/CE Compliant certifications, this relay is ideal for industrial automation, motor control, and power switching applications requiring reliable three-phase operation.
Palabras clave de búsqueda:
84028651
Este producto no está en stock y no se puede pedir en espera.
