SEN-14032 by sparkfun electronics
Imagen de referencia - consulte las especificaciones del fabricante

SEN-14032

SparkFun Electronics

LIDAR-Lite v3 .. Ver descripción completa

Cumple con RoHS
embalaje
Accesorios
Accesorios
This product is backed by Ecco Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Garantía del certificado de conformidad
Atributo del producto
Valor del atributo Seleccionar atributo
Productos Encontrados: 0
Proveedor:
SparkFun Electronics
Nº de pieza:
SEN-14032
RoHS:
Yes
HTS:
9015104000
COO:
TW
ECCN:
EAR99
Embalaje estándar del proveedor La cantidad de artículos, la longitud, el peso o el volumen contenidos en el embalaje original del proveedor para facilitar un almacenamiento, una manipulación y una distribución eficientes.
1

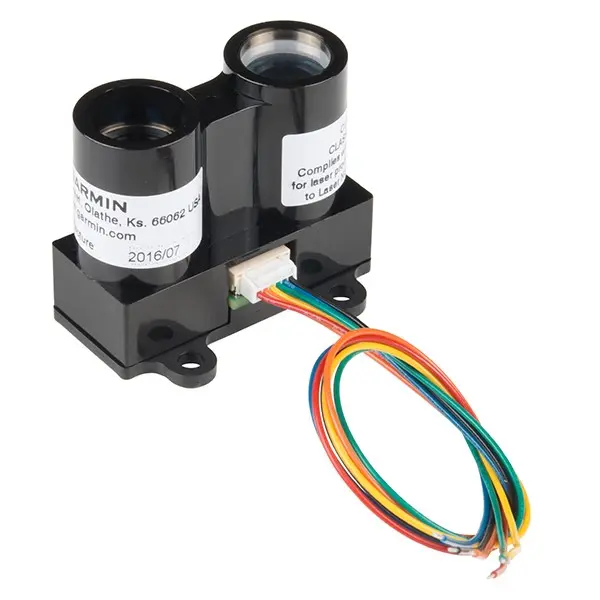

It\'s back! This is the LIDAR-Lite v3, a compact optical distance measurement sensor from Garmin™. When space and weight requirements are tight, the LIDAR-Lite v3 soars. The LIDAR-Lite v3 is the ideal solution for drone, robot or unmanned vehicle applications. This easy-to-use 40-meter laser-based optical ranging sensor has all the core features that made the LIDAR-Lite v2 so popular. Small in form and light in weight with low power consumption of less than 130mA during an acquisition. And it’s user-configurable so you can adjust between accuracy, operating range and measurement time. Each LIDAR-Lite v3 features an edge-emitting, 905nm (1.3 watts), single-stripe laser transmitter, 4 m Radian x 2 m Radian beam divergence, and an optical aperture of 12.5mm. The third version of the LIDAR-Lite still operates at 5V DC with a current consumption rate of
Palabras clave de búsqueda:
SEN14032
EN STOCK: 3
Envío today, Introduzca el valor de la configuración.
Plazo de entrega de fábrica
2 Semanas
Precio (USD)
Cantidad
Precio unitario
Precio total
1
$186.22
$186.22
5
$179.96
$899.80
10
$177.26
$1,772.60
20
$174.56
$3,491.20
50
$171.00
$8,550.00
100 +
$169.47
$16,947.00
Haga clic para solicitar una cotización
