SEN-15569 by sparkfun electronics
La imagen es representativa - ver especificaciones del fabricante

SEN-15569

SparkFun Electronics

Ultrasonic Distance Sensor - HC-SR04 .. Ver descripción completa

RoHS no cumple con RoHS
embalaje
Accesorios
Accesorios
This product is backed by Ecco Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee
Atributo del producto
Valor de atributo Seleccionar atributo
Productos Encontrados: 0
Proveedor:
SparkFun Electronics
Nº de pieza:
SEN-15569
RoHS:
No
HTS:
9031499000
COO:
CN
ECCN:
EAR99
Paquete estándar del proveedor Esta información se proporciona a los clientes que prefieren comprar en múltiplos de la cantidad del paquete estándar del fabricante. Las cantidades mínimas de pedido y los múltiplos de pedido requeridos se presentan con nuestra información de precios y d
1

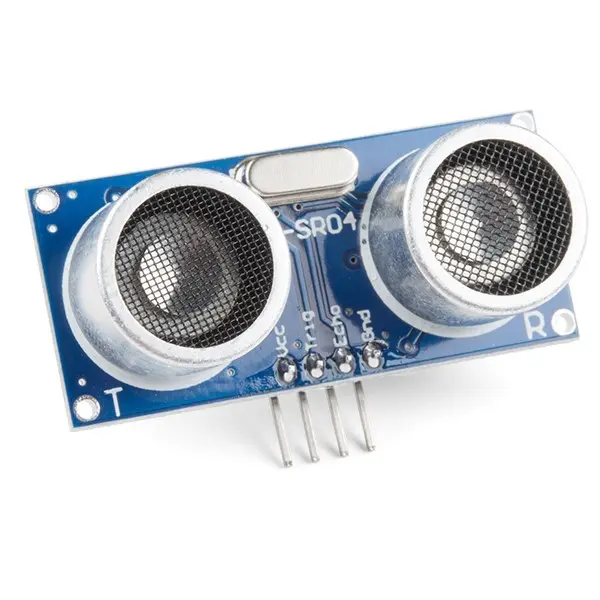

This is the HC-SR04 ultrasonic distance sensor. This economical sensor provides 2cm to 400cm of non-contact measurement functionality with a ranging accuracy that can reach up to 3mm. Each HC-SR04 module includes an ultrasonic transmitter, a receiver and a control circuit. There are only four pins that you need to worry about on the HC-SR04: VCC (Power), Trig (Trigger), Echo (Receive), and GND (Ground). You will find this sensor very easy to set up and use for your next range-finding project! This sensor has additional control circuitry that can prevent inconsistent \"bouncy\" data depending on the application. **Features:** * Operating Voltage: 5V DC * Operating Current: 15mA * Measure Angle: 15° * Ranging Distance: 2cm - 4m **Documents:** * [Datasheet](https://cdn.sparkfun.com/datasheets/Sensors/Proximity/HCSR04.pdf) * [Example Tutorial](http://www.instructables.com/id/Simple-Arduino-and-HC-SR04-Example/?ALLSTEPS) * [GitHub](https://github.com/sparkfun/HC-SR04_UltrasonicSensor)
Palabras clave de búsqueda:
SEN15569
EN STOCK: 35
Puede enviar inmediatamente
Cantidad mínima de pedido:
5
Plazo de entrega de fábrica
2 Semanas
Precio (USD)
Cantidad
Precio por unidad
Precio Ext.
5
$5.39
$26.95
25
$4.91
$122.75
100
$4.72
$472.00
250
$4.62
$1,155.00
500
$4.52
$2,260.00
1.000
$4.47
$4,470.00
2.500
$4.41
$11,025.00
5.000 +
$4.38
$21,900.00
Haga clic para obtener una cotización
