5-1971876-3 by te connectivity / amp brand

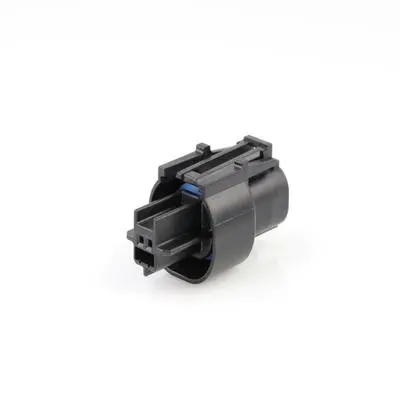

Imagen de referencia - consulte las especificaciones del fabricante
FICHA TÉCNICA

5-1971876-3

TE Connectivity / AMP Brand

PTL 3X3 PLUG HSG HIGH TEMP KEY A LGR .. Ver descripción completa

Cumple con RoHS
BAG embalaje
Accesorios
Accesorios
This product is backed by Ecco Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Garantía del certificado de conformidad
Atributo del producto
Valor del atributo Seleccionar atributo
Productos Encontrados: 0
Proveedor:
TE Connectivity / AMP Brand
Nº de pieza:
5-1971876-3
RoHS:
Yes
HTS:
8538906000
COO:
US
ECCN:
EAR99
Embalaje estándar del proveedor La cantidad de artículos, la longitud, el peso o el volumen contenidos en el embalaje original del proveedor para facilitar un almacenamiento, una manipulación y una distribución eficientes.
1300
Tipo de encapsulado:
BAG
Montaje:
Cable Mount
Orientación del Cuerpo:
Straight
Género:
PL
Método de terminación:
Crimp
Número de Contactos:
9
Tensión Máxima Nominal:
600,600 VDC|VAC
Corriente Nominal Máxima:
20/Contact A
Temperatura de Funcionamiento:
-55 to 150 °C
5-1971876-3 is a high-temperature plug housing connector designed for the TE Connectivity POWER TRIPLE LOCK connector system. This connector features a 3x3 position configuration with 9 total positions and a 6.0 mm centerline pitch, supporting wire-to-panel or wire-to-wire connections. The housing is constructed from thermoplastic material rated for 150°C operating temperature and meets glow wire test requirements per IEC 60335-1, with tin-plated copper alloy contacts rated for up to 12 amps maximum current at 600 VAC/VDC. The connector incorporates the POWER TRIPLE LOCK system's three-point locking mechanism—cap/plug latch, Connector Position Assurance (CPA) device, and Terminal Position Assurance (TPA) device—ensuring secure mating and contact retention. This product is ideal for high-temperature power and signal applications in appliances and industrial equipment requiring reliable, secure connections with enhanced assembly accuracy.
Palabras clave de búsqueda:
519718763
EN STOCK: 1.766
Puede enviar inmediatamente
Cantidad mínima de pedido:
50
Plazo de entrega de fábrica
6 Semanas
Precio (USD)
Cantidad
Precio unitario
Precio total
50
$0.5965
$29.8250
250
$0.5473
$136.8250
1.300
$0.4968
$645.8400
2.600
$0.4756
$1,236.5600
5.200
$0.4545
$2,363.4000
7.800
$0.4421
$3,448.3800
10.400
$0.4253
$4,423.1200
15.600 +
$0.4132
$6,445.9200
