66101-1
TE Connectivity / AMP BrandPower Contact - Socket - AMP Type III+ - 18 to 16 AWG (.8 to 1.4 mm²) Wire Size - 30.0µin (0.76µm) Gold Contact Finish - Crimp Termination. .. Ver descripción completa
Atributo del producto
Valor de atributo
Seleccionar atributo
Productos Encontrados: 0
Proveedor:
TE Connectivity / AMP Brand
Nº de pieza:
66101-1
RoHS:
Yes
HTS:
8536904000
COO:
MX
ECCN:
EAR99
Paquete estándar del proveedor
1000
Tipo de paquete:
Carton
Contact Type:
Stamped Signal
Gender:
SKT
Contact Size:
16
Wire Size:
16-18 AWG
Contact Material:
Brass
Contact Plating:
Gold over Nickel
Maximum Current Rating:
N/A
Termination Method:
Crimp

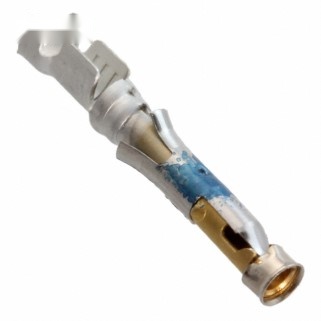

The 66101-1 is socket signal contact made of brass with gold plated finish. The Type III+ series crimp contact is suitable for G series, M series and CPC connectors.
Características destacadas del producto:
- Socket
- Gold (30) over Nickel (30) Contact Mating Area Plating
- Wire Range = 0.80-1.40² [18-16] mm [AWG]
- Insulation Diameter = 2.03 - 2.54 mm
- Brass Contact Material
Palabras clave de búsqueda:
661011
EN STOCK:
65
Puede enviar inmediatamente
A la orden:
19.875
puede enviar 7/27/26
Cantidad mínima de pedido:
25
Plazo de entrega de fábrica
12 Semanas
Precio (USD)
Cantidad
Precio por unidad
Precio Ext.
25
$2.08
$52.00
100
$1.87
$187.00
250
$1.73
$432.50
500
$1.64
$820.00
1.000
$1.50
$1,500.00
3.000
+
$1.44
$4,320.00
Guías de productos
Product Drawing - SOCKET ASSEMBLY, LOOSE PIECE, TYPE III+
FICHA TÉCNICA
Product Specification - Type III+ (Size 16) Contacts
Instruction Sheet - Selection of Multimate Pin and Socket Contacts
