Proveedor:
TE Connectivity / Deutsch
Nº de pieza:
CTJ116E01D-513[V001]
Alias/alias:
YCTJ116E01DC015000, M81714/60-16-01
RoHS:
Yes
HTS:
8536694020
COO:
MX
ECCN:
EAR99
Paquete estándar del proveedor
1
Tipo de paquete:
Bag

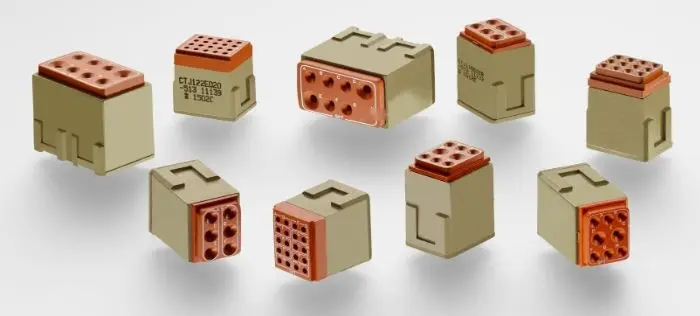

The CTJ116E01D-513[V001] is a Size 16 feedback bussing module within the DEUTSCH CTJ Series Common Termination System, designed to meet AS81714 Series II qualification standards for robust and highly reliable wire termination in demanding aerospace, defense, and marine environments. This module features a single bus configuration (O1D) and is engineered to withstand fluid immersion per MS55 specifications, with contacts finished in gold over copper and a fluid-resistant elastomer sealing grommet for environmental protection. The module accommodates wire sizes in the 14-12 AWG range with a current rating of 23 A, meeting AS39029 paragraph 3.4.2 specifications. The 513 modification code indicates elastomer material changes to meet AS81714 fluid requirements, ensuring reliable performance in harsh operational conditions. This termination system is ideal for applications requiring secure, environmentally sealed electrical connections in aerospace wiring harnesses, defense systems, and marine installations where durability and compliance with military standards are essential.
Palabras clave de búsqueda:
CTJ116E01D513V001
EN STOCK:
0
A la orden:
24
puede enviar 8/3/26
100
puede enviar 9/23/26
Plazo de entrega de fábrica
24 Semanas
Precio (USD)
Cantidad
Precio por unidad
Precio Ext.
1
$80.17
$80.17
5
$78.59
$392.95
10
$77.23
$772.30
25
$72.35
$1,808.75
50
$56.22
$2,811.00
100
$52.23
$5,223.00
250
+
$51.70
$12,925.00
